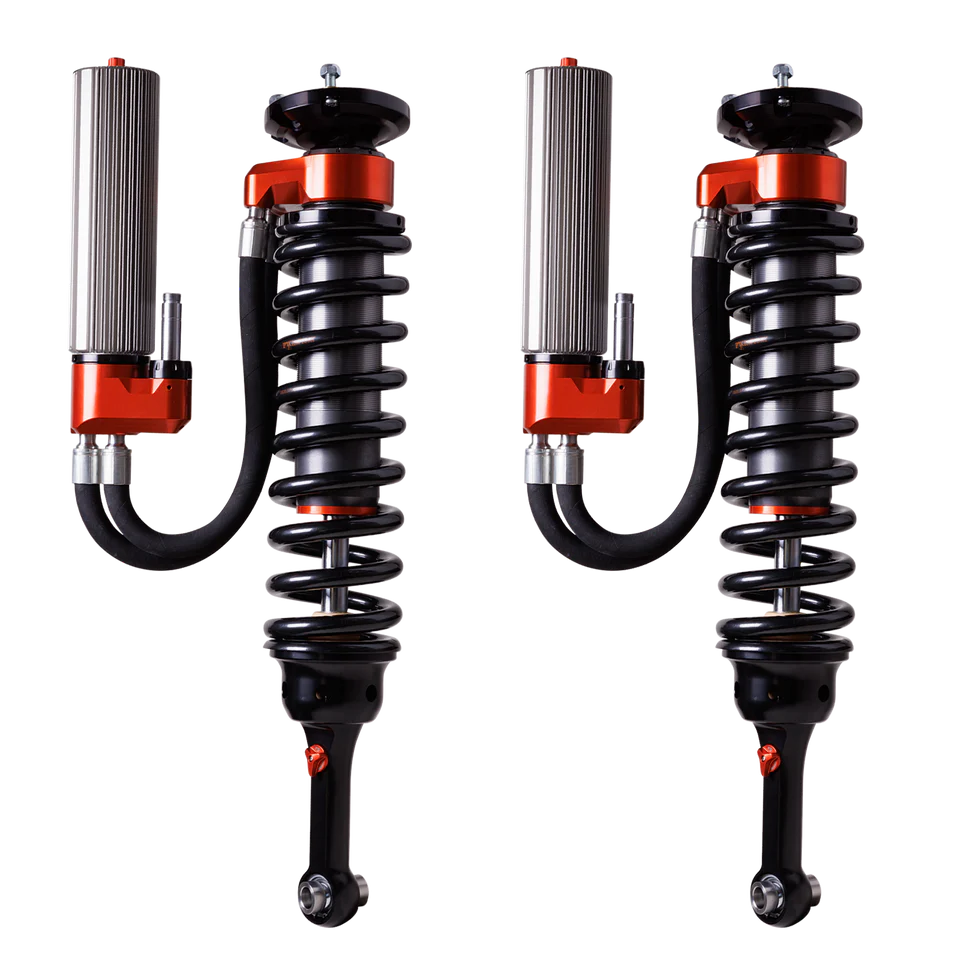

FORD F-150 23-25 RAPTOR | 3.2 FACTORY RACE SERIES | LIVE VALVE

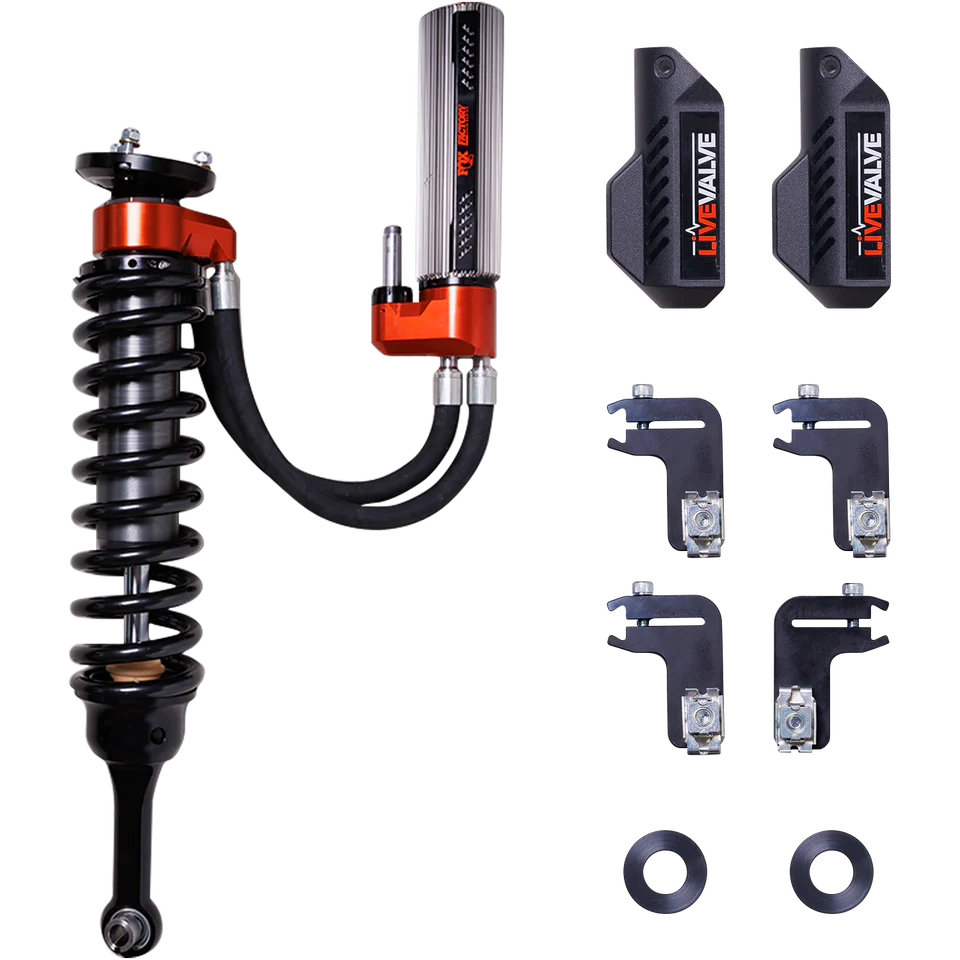

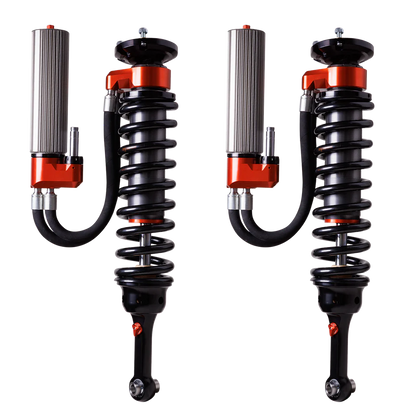

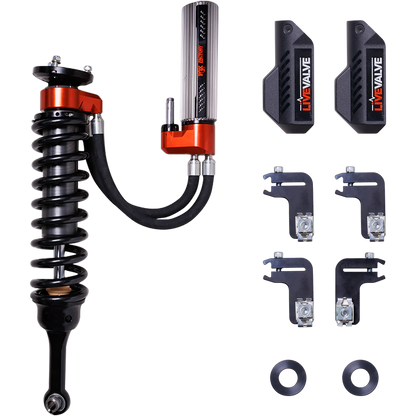

FOX Factory Race Series 3.2 Live Valve Internal Bypass shocks for the 3rd generation Ford F-150 Raptor deliver semi-active adjustment, position-sensitive damping technology, and plug-and-play integration with OEM electronics in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

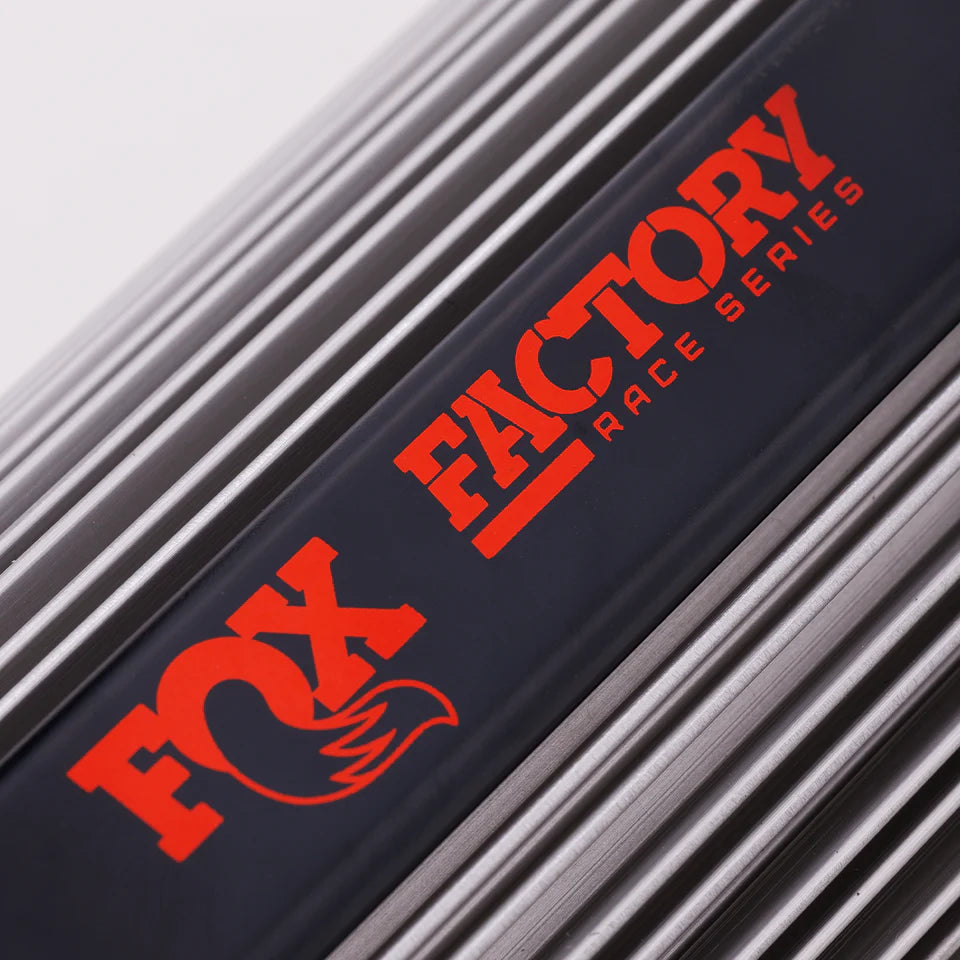

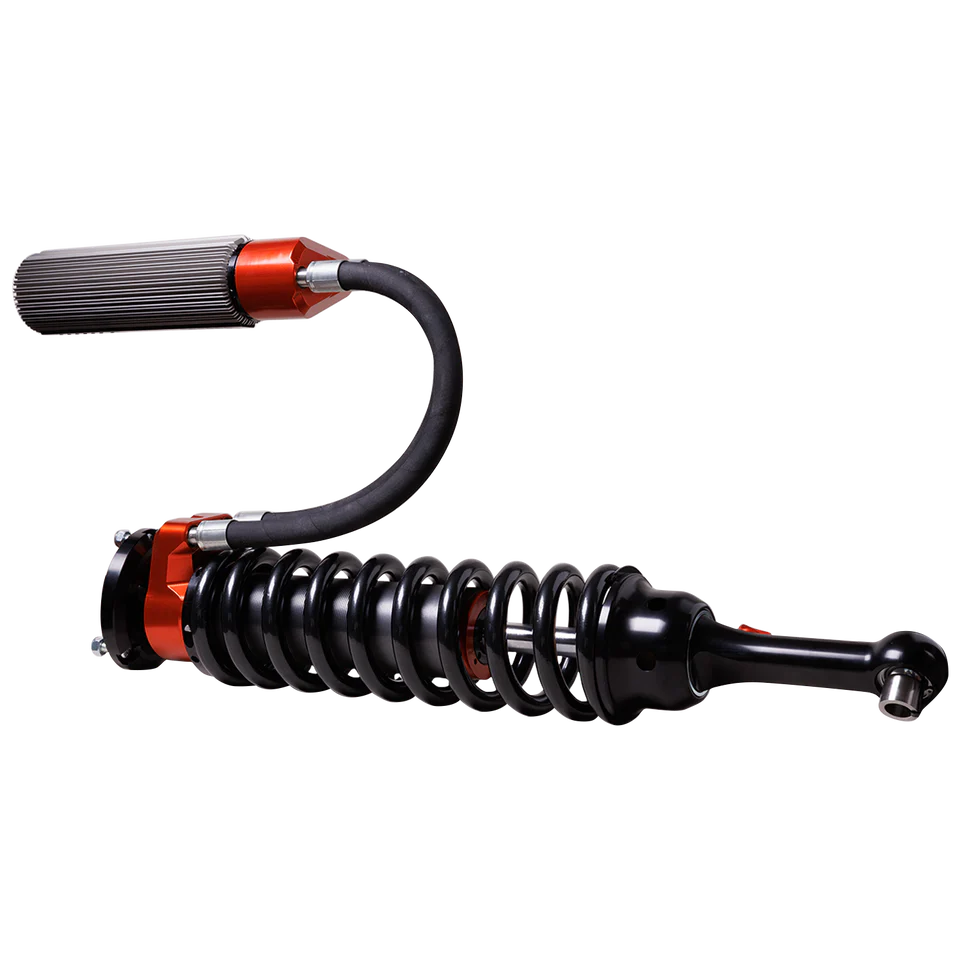

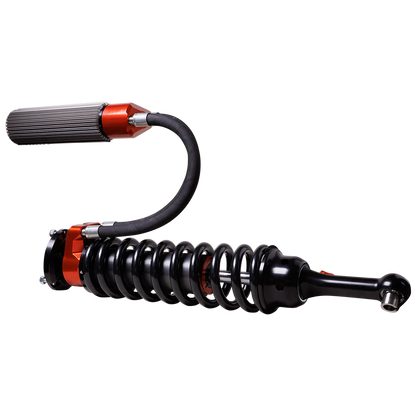

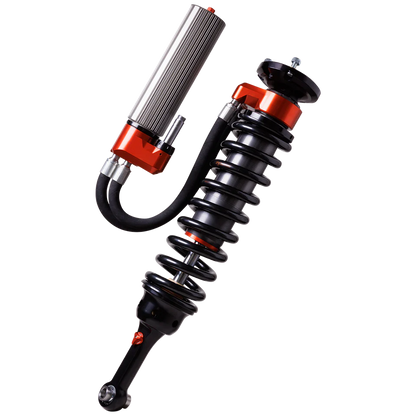

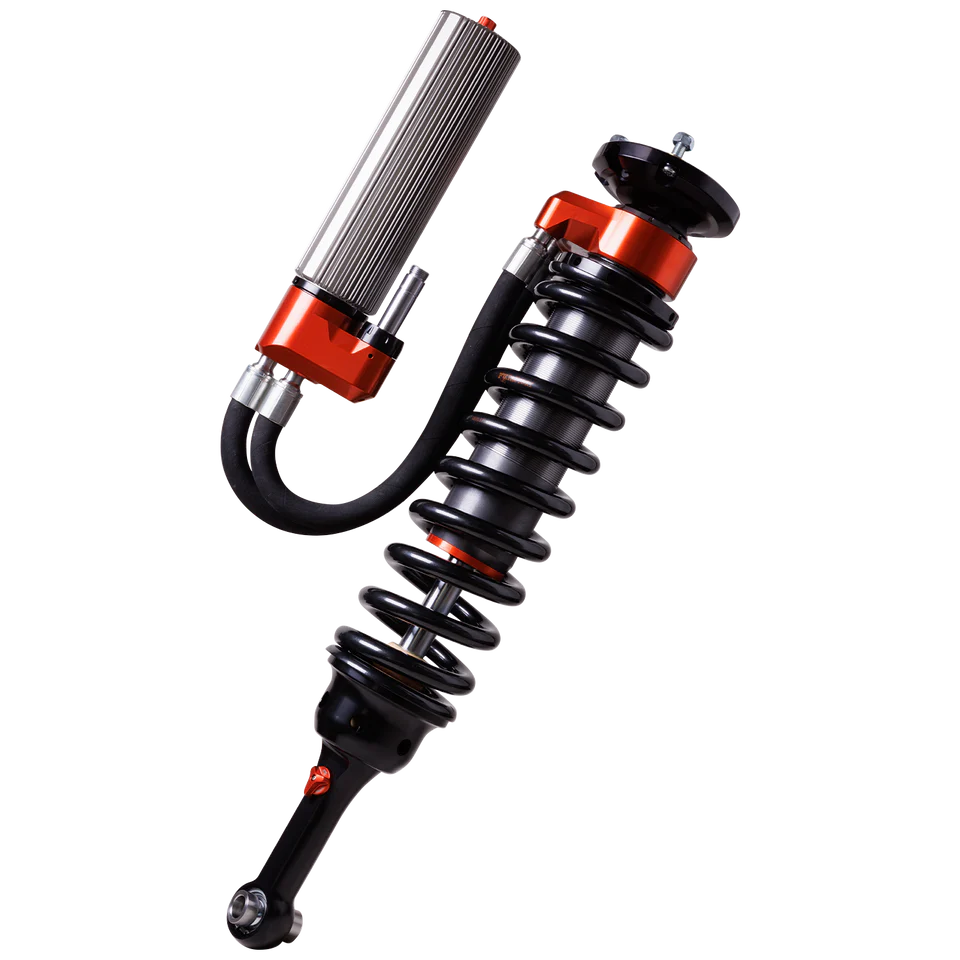

Recirculating Reservoirs enable a continuous exchange of shock fluid between the finned external reservoir and body using a checked piston, keeping shock temperatures cool for better performance. Type II anodization withstands higher shock pressures and prevents corrosion of the 3.2-inch diameter aluminum bodies. Fine-tune your ride with 3-way quick switch (QS3) adjusters on the eyelets.

FOX 3.2 Live Valve shocks with Internal Bypass provide the support, adjustment, and confidence you need while driving at speed. Experience race-bred performance next time you leave the pavement.
