Gen 2 ADJUSTABLE BUMP SYSTEM

NOTE: WE HAVE ADDED A THIRD BOLT TO THE FRAME WITH A SUPPLIED FLANGED NUT.  ALSO, FOX HAS SWITCHED OUT 2021 2.0 IFP BUMPS WITH ORANGE RINGS VS GOLD.

Note: the video doesn't show the new revised adjustable bump system.  All new kits will be sent out with three bolts holding it to the frame, and not the two as shown in the video. SVC will supply a third nut welded to a large washer to be used in the middle hole of the frame brace. The Welds on Factory Frame may need to be sanded down for proper fitment of parts

OVERVIEW:

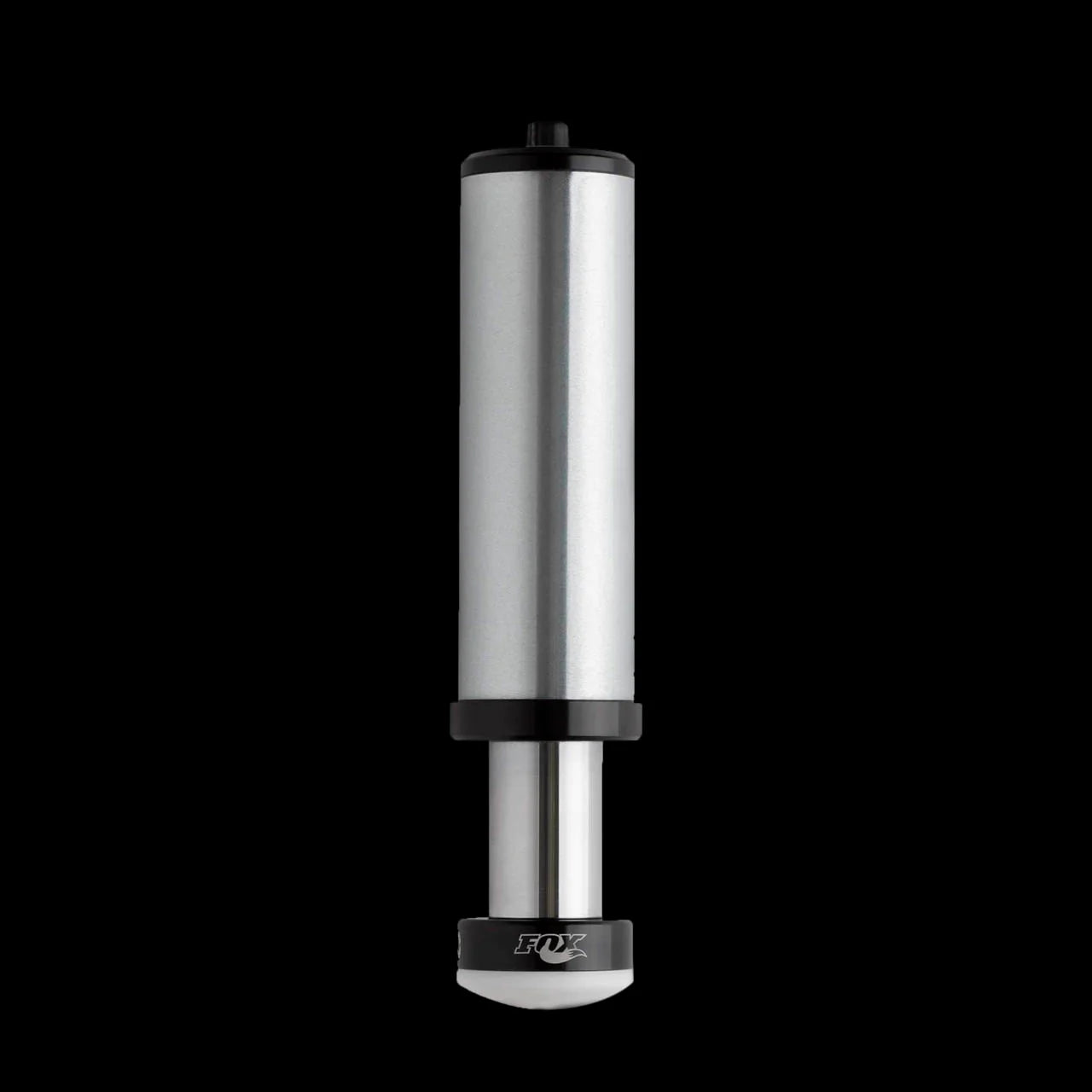

We've been hard at work developing our new Adjustable Bump System for the 2017+ Gen 2 Ford Raptor.  We've not only stayed with our industry-leading adjustable but added to it for the Gen 2 crew.  We are now featuring Fox's Racing Shox Internal Floating Piston bump stop.  What does this mean?  Simple, you have all the bottoming out compression control that you could ever need, but still have a soft initial impact which reduces rear-end donkey kicking that plagues these trucks with other bump kits.

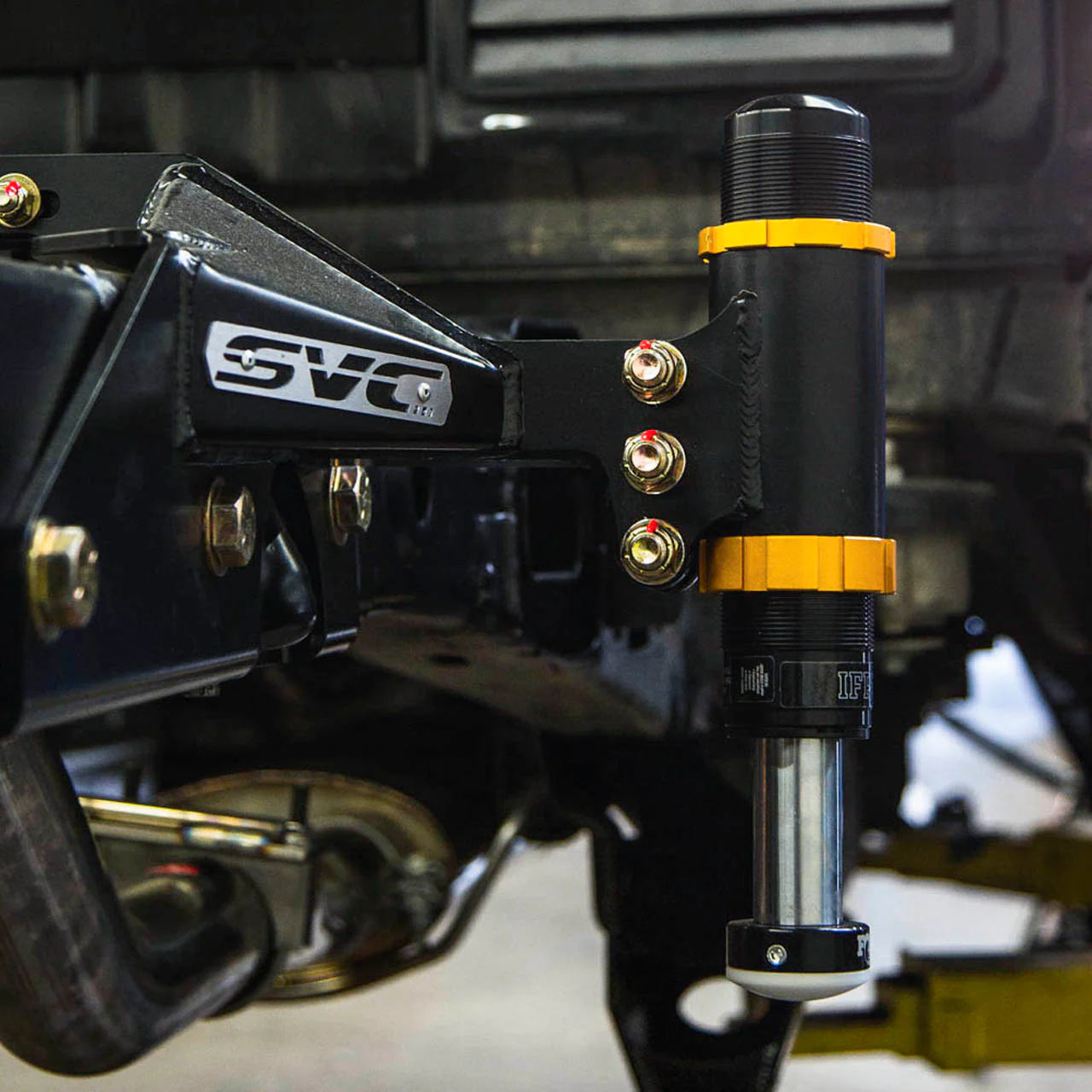

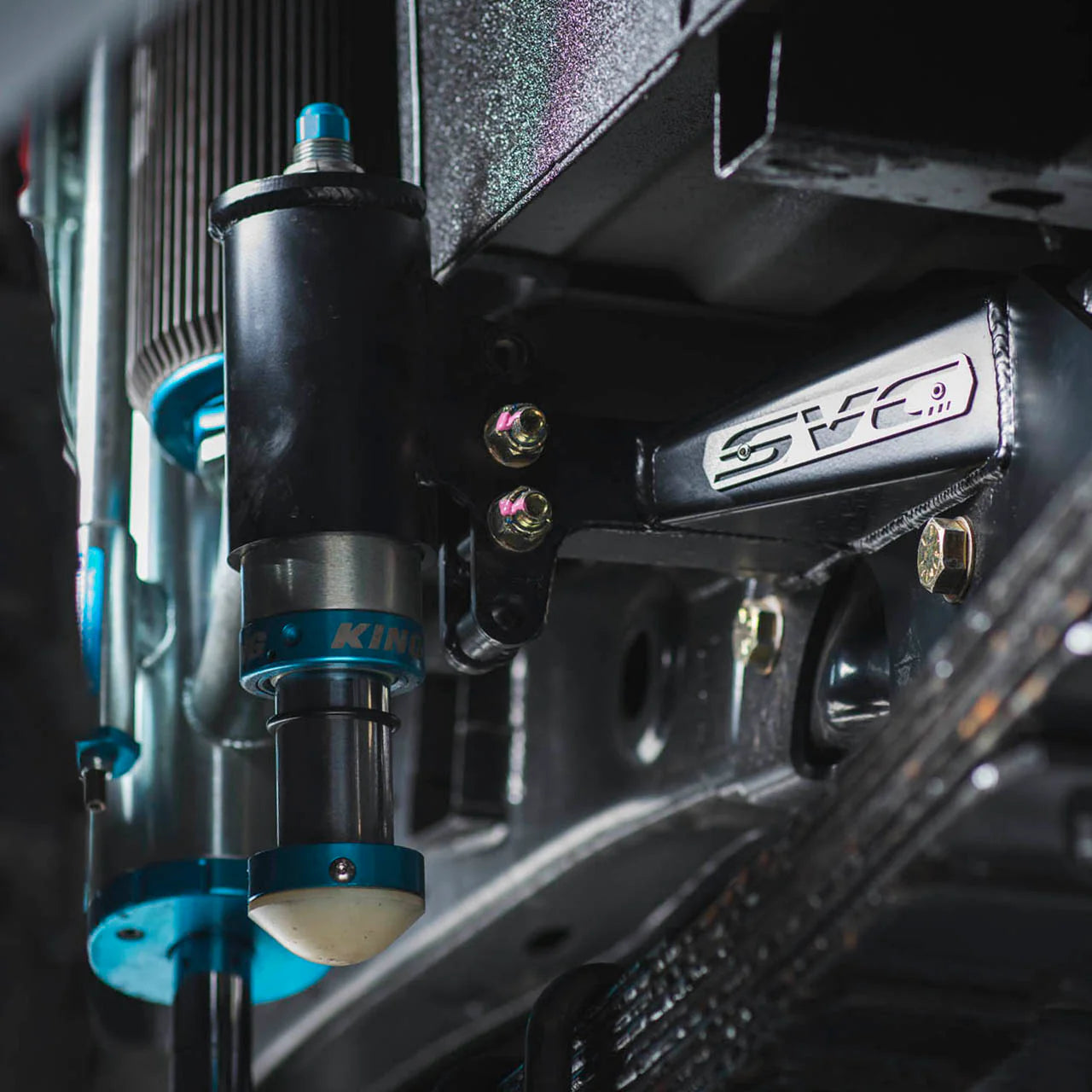

The Gen 2 ABS kit is fitted with a removable bump can that can be adjusted up or down.  When you move the bump can up, the kit is then in Xtreme Offroad mode. The highest setting will allow you to install a rear Bypass Rack and run a longer race shock through the bed for increased damping and bump travel.

Note:  Leave the bump can in stock setting for all shock applications that mount to existing factory shock mounts.

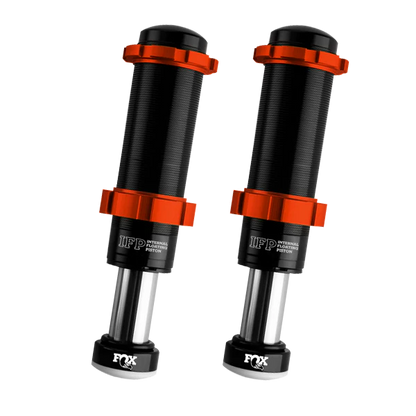

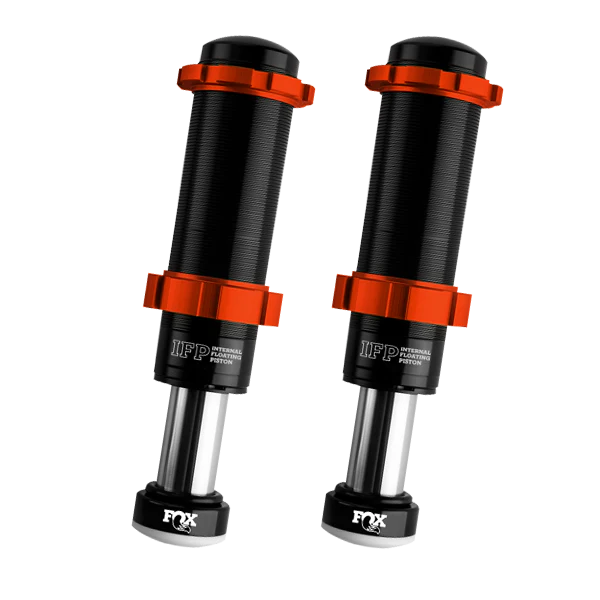

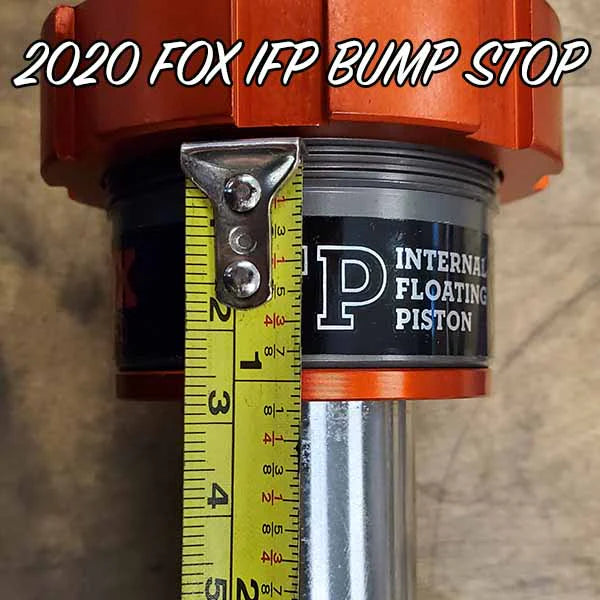

NOTE:  FOX'S 2020 IFP BUMPS ARE NOW ORANGE, AND NEED TO BE SET TO THE MEASUREMENT IN THE PICTURE BELOW

WELD'S ON FRAME SHOULD BE SANDED DOWN PRIOR TO INSTALLATION TO ENSURE PROPER FITMENT AND TO AVOID DAMAGE TO SVCOFFROAD PRODUCT
